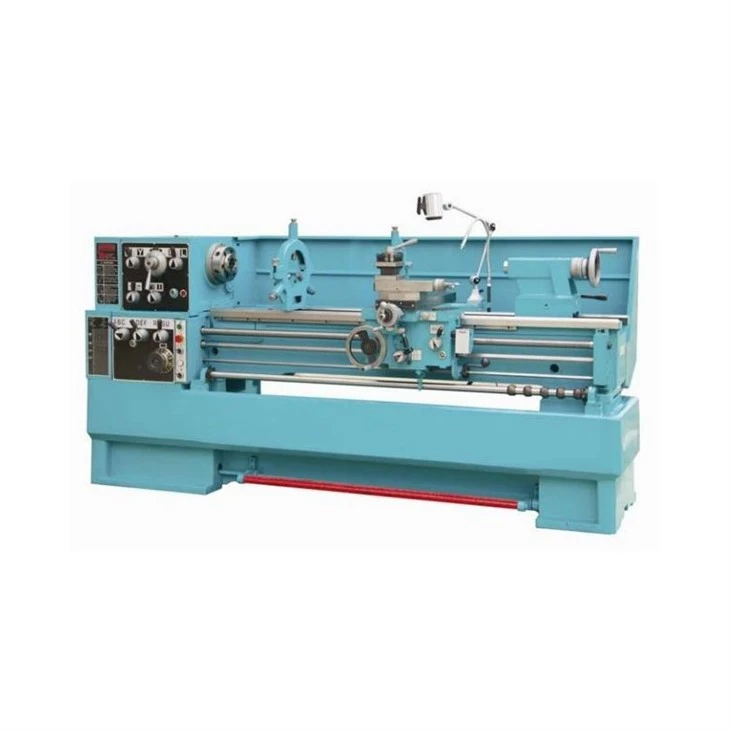

Mae model C6241 / C6246 / C6251 / C6256 turn â llaw yn addas ar gyfer troi y tu mewn a'r tu allan i arwyneb silindrog, arwyneb conigol ac arwyneb cylchdroi arall, gan droi amrywiol edafedd traw metrig, modfedd, modiwl a diametrig, a gall ddrilio twll a thynnu rhigol olew a gweithiau eraill. .
Paramedr Manyleb
|
Eitemau |
Manyleb |
Uned |
C6241 |
C6246 |
C6251 |
C6256 |
|
Gallu prosesu |
Max. swing dros y gwely |
mm |
410 |
460 |
510 |
560 |
|
Max. swing dros sleid croes |
mm |
224 |
274 |
305 |
335 |
|
|
Max. diamedr overgap swing |
mm |
640 |
690 |
735 |
785 |
|
|
Hyd effeithiol yn y bwlch |
mm |
165 |
200 |
|||
|
Pellter rhwng canolfannau |
mm |
1000/1500/2000 |
1000/1500/2000/3000 |
|||
|
Lled y gwely |
mm |
350 |
350 |
|||
|
Headstock |
turio spindle |
mm |
58 |
80 |
||
|
Trwyn gwerthyd |
ISO-D6 |
ISO-D8 |
||||
|
tapr gwerthyd |
MT6 |
MT7 |
||||
|
Ystod cyflymder gwerthyd |
r/munud |
12 cam, 25-2000 |
12 cam, 25-1600 |
|||
|
Blwch porthiant |
Porthiant metrig hydredol |
mm/rev |
42 math, 0.031-1.7 |
35kinds, 0.059-1.646 |
||
|
Porthiant modfedd hydredol |
gan gynnwys/rev |
42 math, 0.0011-0.0663 |
35 math, 0.0022-0.0612 |
|||
|
Porthiant traws-fetrig |
mm/rev |
42 math, 0.014-0.784 |
35kinds, 0.020-0.573 |
|||
|
Porthiant traws-fetrig |
gan gynnwys/rev |
42 math, 0.00033-0.01873 |
35 math, 0.00048-0.01354 |
|||
|
Ystod edafedd metrig |
mm |
41 math, 0.1-14 |
47 math, 0.2-14 |
|||
|
Amrediad edafedd modfedd |
60 math, 2-112TPI |
60 math, 2-112TPI |
||||
|
Amrediad edafedd modwl |
34 math 0.1-7MP |
39 math 0.1-7MP |
||||
|
Ystod edafedd diamedr |
50 math 4-112DP |
50 math 4-112DP |
||||
|
Cerbyd |
Max. teithio o'r sleid uchaf |
mm |
120 |
130 |
||
|
Max. travel of cross slide |
mm |
290 |
316 |
|||
|
Max. adran yr offeryn |
mm |
25*25 |
25*25 |
|||
|
Tailstock |
Diamedr cwils |
mm |
60 |
75 |
||
|
tapr cwils |
MT4 |
MT5 |
||||
|
Teithio Quill |
mm |
128 |
180 |
|||
|
Modur |
Prif bŵer modur |
kw |
5.5 |
7.5 |
||
|
Modur pwmp oerydd |
W |
90 |
90 |
|||
|
Maint pacio |
Pellter canol (1000mm) |
cm |
230*112*175 |
245*112*178 |
||
|
Pellter canol (1500mm) |
295*112*175 |
295*112*178 |
||||
|
Pellter canol (2000mm) |
280*112*175 |
345*112*178 |
||||
|
Net /gros |
Pellter canol (1000mm) |
kg |
1650/1850 |
1700/1900 |
2050/2300 |
2150/2400 |
|
Pellter canol (1500mm) |
1800/2050 |
1850/2100 |
2150/2450 |
2250/2550 |
||
|
Pellter canol (2000mm) |
1950/2250 |
2000/2300 |
2450/2800 |
2550/2900 |
||
Nodwedd Cynnyrch
1. Mae wyneb y gwelyau wedi'i galedu amledd uwchsonig a malu manwl gywir.
2. Mae gerau Headstock wedi'u malu'n fanwl gywir ac wedi'u caledu i leihau sŵn.
3. stondin integredig gadw'r peiriant mewn anhyblygedd gwaith uchel.
4. model cyflymder amrywiol ar gyfer dewisol.
